The Essential Guide to Brightness Specifications for Pakistani Display Environments
In Pakistan’s challenging outdoor conditions—from the blinding sunshine of Punjab summers to the varied lighting environments of indoor retail spaces—selecting the right brightness level for your SMD screen can make the difference between content that captivates and content that disappears. Yet brightness specifications remain among the most misunderstood aspects of digital display technology.
Decoding Brightness Measurements
What Are Nits and Why Do They Matter?
The Science of Brightness Measurement
- Definition: 1 nit = 1 candela per square meter (cd/m²)
- How brightness is physically measured and verified
- Relationship between power consumption and brightness levels
- Real-world significance of brightness numbers
Brightness Perception vs. Technical Specifications
- Human eye sensitivity and brightness perception
- Contrast ratio’s influence on perceived brightness
- Color temperature impact on brightness perception
- The limitations of specification sheets without contextual understanding
My first major project mistake happened five years ago when specifying displays for a high-end jewelry retailer in Islamabad. Despite selecting screens with adequate brightness ratings on paper, we failed to account for how spotlighting on merchandise would affect contrast perception. The displays looked washed out next to the brilliantly lit product cases—a lesson in contextual brightness that specifications alone couldn’t have predicted.
Typical Brightness Ranges for Different Applications
Indoor SMD Display Brightness Requirements
- Controlled lighting environments: 800-1,500 nits
- Bright indoor spaces (malls, airports): 1,500-2,500 nits
- Indoor environments with direct sunlight exposure: 2,500-4,000 nits
- Special high-brightness indoor applications: 4,000+ nits

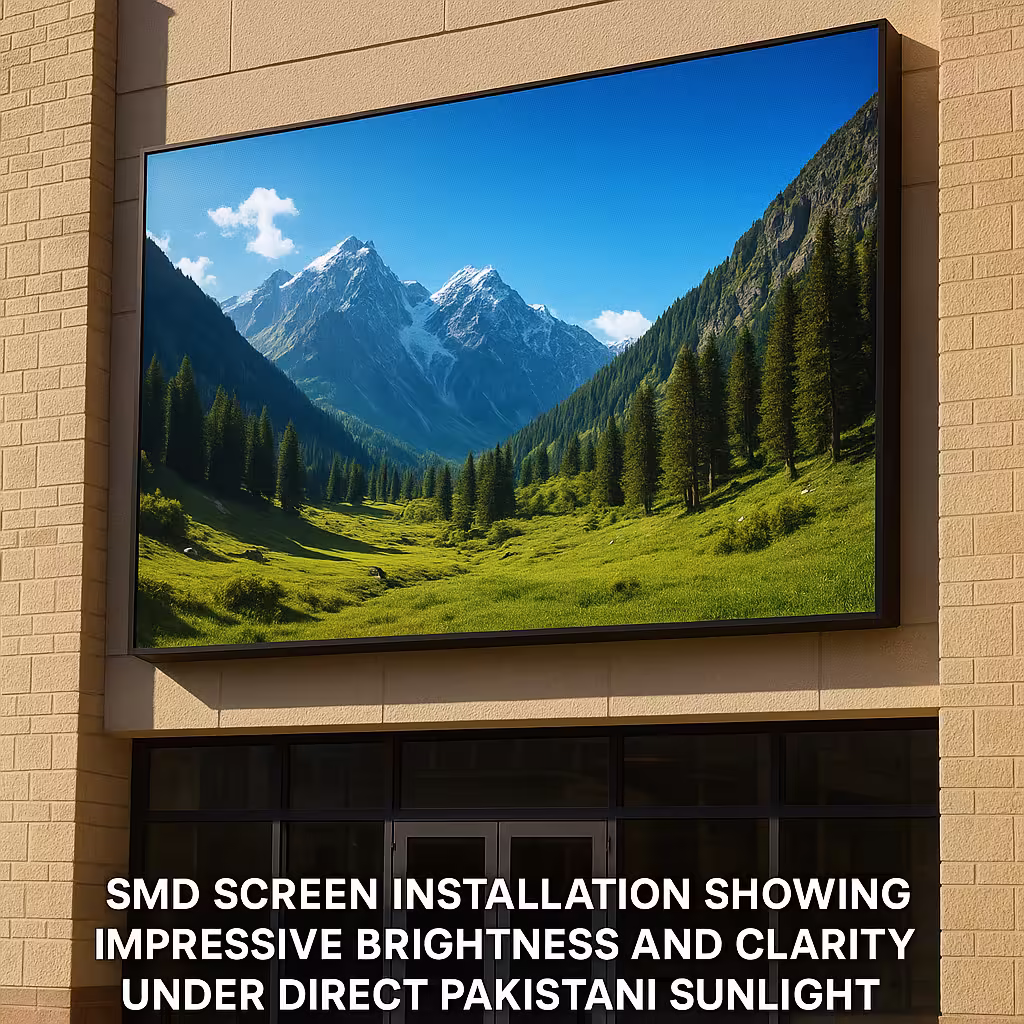

Outdoor SMD Display Brightness Standards
- Shaded outdoor locations: 4,000-5,500 nits
- Standard Pakistani outdoor conditions: 5,500-7,500 nits
- Direct sunlight exposure areas: 7,500-10,000+ nits
- Vehicle-mounted and extreme brightness applications: 10,000+ nits
Environmental Factors Affecting Brightness Requirements in Pakistan
Regional Sunlight Intensity Variations
Geographic Brightness Considerations
- Northern areas vs. southern coastal regions
- Urban canyon effects in city centers
- Seasonal sunlight intensity variations
- Impact of surrounding building materials and reflectivity
Time-of-Day Brightness Requirements
- Morning vs. afternoon sun exposure differences
- Peak brightness needs during critical hours
- Dynamic brightness adjustment capabilities
- Energy management through brightness optimization
While consulting for a national bank’s ATM display network, we discovered that locations in Karachi required nearly 20% higher brightness ratings than identical installations in Islamabad, despite using the same equipment and content. The coastal haze actually increased ambient brightness through diffusion rather than reducing it as initially expected—a Pakistani-specific environmental factor not covered in any international display guidelines.
Competing Light Sources in Installation Environments
Urban Environmental Challenges
- Surrounding digital signage competition
- Storefront and street lighting interference
- Reflective building materials in modern districts
- Traffic headlight exposure for roadside displays
Indoor Ambient Light Considerations
- Retail lighting systems and their impact
- Natural light from windows and skylights
- Event lighting variations in multi-use spaces
- Commercial lighting trends in Pakistani retail environments
Technology Factors Influencing Brightness Performance
Technical Specifications Beyond Raw Nit Ratings
Surface Treatments and Optical Enhancements
- Anti-glare coatings and their effectiveness
- Polarization filter options for specific conditions
- Light sensor integration for adaptive brightness
- Optical bonding and display enhancement technologies
Heat Management for High-Brightness Displays
- Relationship between brightness and heat generation
- Cooling systems for Pakistani climate conditions
- Temperature-based brightness throttling concerns
- Longevity impact of operating at maximum brightness
During a digital billboard installation near Lahore’s main highway intersection last summer, we faced persistent overheating issues despite following standard ventilation guidelines. The solution came from a local engineer who modified the enclosure with a traditional design inspired by wind-catching towers from older architecture—passive cooling principles perfectly adapted to regional conditions that no manufacturer’s manual covered.
Brightness Consistency Considerations
Panel Uniformity Across Large Displays
- Edge-to-center brightness variance
- Module-to-module calibration requirements
- Aging effects on brightness uniformity
- Quality control standards for brightness consistency
Viewing Angle Impact on Perceived Brightness
- Brightness loss at extreme viewing angles
- Technologies addressing off-axis viewing
- Installation angle considerations for optimal viewing
- Multi-directional viewing environment planning
Practical Brightness Selection Guidelines
Application-Based Selection Framework
Retail Environment Recommendations
- Storefront window displays facing outward: 3,000-7,000 nits
- Interior product promotion screens: 1,000-2,500 nits
- Feature wall installations: 1,500-3,000 nits
- Interactive kiosk displays: 500-1,500 nits
Corporate and Institutional Applications
- Lobby and reception areas: 1,000-2,000 nits
- Conference and meeting room displays: 400-1,200 nits
- Exterior building signage: 5,000-8,000 nits
- Employee information displays: 500-1,000 nits
The marketing director of a major Pakistani telecom brand once insisted on maximum brightness for their flagship store displays, assuming “brighter is always better.” After several complaints about eye strain from staff working near the screens, we conducted a controlled test that revealed optimum engagement actually occurred at about 60% of maximum brightness. The lesson? Context-appropriate brightness beats maximum specifications every time.
Content-Based Brightness Requirements
Content Style Influence on Brightness Needs
- Text-heavy content vs. image-dominant displays
- Video content considerations for brightness
- Animation and motion graphics requirements
- Background color impact on perceived brightness
Brand and Color Considerations
- Corporate color accuracy at different brightness levels
- Premium brand perception and display quality
- Color consistency across multiple installation environments
- Product color representation requirements
Budget Implications of Brightness Specifications
Cost Factors Related to Brightness Capabilities
Price Scaling for Higher Brightness
- Typical premium for high-brightness displays
- Cost-effective brightness ranges for different applications
- Value analysis for brightness investment
- Hidden costs of inadequate brightness
Operational Cost Considerations
- Power consumption increase with brightness levels
- Cooling system requirements and costs
- Maintenance implications of high-brightness operation
- Longevity impact and replacement frequency
When developing a multi-branch banking display network across Pakistan, we created a brightness-zoning approach that saved nearly 40% in hardware costs compared to specifying uniform high-brightness displays for all locations. By mapping actual environmental conditions at each branch and right-sizing brightness specifications, we avoided the common pitfall of over-engineering some locations while under-specifying others.
Energy Efficiency and Sustainability Factors
Power Consumption Realities
- Direct relationship between brightness and energy use
- Daily operational cost calculations
- Green building certification impact
- Load requirements for electrical planning
Lifetime Performance Considerations
- Brightness degradation over operational life
- Initial brightness specification to accommodate aging
- Maintenance scheduling based on brightness requirements
- Warranty implications for continuous high-brightness operation
Advanced Brightness Management Strategies
Automated Brightness Control Systems
Sensor-Based Adjustment Technologies
- Ambient light sensors and their functionality
- Camera-based brightness assessment
- Timer-based brightness programming
- Weather-responsive brightness systems
Content-Aware Brightness Optimization
- Dynamic adjustment based on content type
- Contrast-enhancement technologies
- Peak brightness management for energy efficiency
- Intelligent brightness zoning for large displays
A shopping mall in Islamabad implemented our recommended brightness management system last year that automatically adjusted levels based on both ambient conditions and content type. The result was a 37% reduction in power consumption while actually improving perceived content quality—proving that smarter brightness management beats brute-force high nits in most situations.
Brightness Calibration and Maintenance
Initial Setup and Configuration
- Professional calibration importance
- Measurement tools and techniques
- Environmental documentation for future reference
- Baseline performance establishment
Ongoing Brightness Management
- Scheduled recalibration requirements
- Cleaning impact on brightness performance
- Component replacement to maintain specifications
- Documentation and performance tracking
Making the Right Brightness Decision
Practical Selection Methodology
Step-by-Step Brightness Determination
- Analyze the specific installation environment
- Determine worst-case ambient light conditions
- Consider the typical content requirements
- Factor in viewing distance and angle ranges
- Account for budget constraints and energy costs
- Select optimal brightness with future needs in mind
Avoiding Common Brightness Specification Mistakes
- Over-specifying brightness without need
- Under-estimating ambient light challenges
- Failure to consider seasonal variations
- Ignoring content-specific brightness requirements
The optimal brightness for your SMD screen depends on a complex interplay of environmental conditions, content requirements, and budget realities specific to your Pakistani installation location. While higher brightness ratings provide greater flexibility, they come with significant cost and efficiency trade-offs that must be carefully weighed against actual needs rather than theoretical maximums.
Smart brightness specification isn’t about achieving the highest possible nit rating—it’s about selecting the right brightness for your specific application, content, and viewing environment to deliver maximum impact with minimum waste.
