Introduction
Surface Mount Device (SMD) components have become the backbone of modern electronics manufacturing, and if you’re working in Pakistan’s rapidly growing tech sector, understanding these tiny powerhouses isn’t optional—it’s essential.
Last month, I watched an engineer at one of Karachi’s leading electronics firms struggle for three hours with a failed circuit board. The culprit? A misidentified SMD resistor that cost less than two rupees but brought a 50,000-rupee production line to a halt. That’s the reality of SMD components—they’re small, affordable, but absolutely critical.
Why should you care about mastering SMD knowledge? The electronics industry in Pakistan is experiencing unprecedented growth, with local manufacturers increasingly shifting from through-hole to surface mount technology. Companies like AristaVision are seeing 40% more demand for SMD-related services compared to just two years ago.
These components aren’t just smaller versions of traditional parts. They offer superior performance, reduced electromagnetic interference, and enable the compact designs that modern consumers demand. From smartphones to automotive systems, SMD technology powers the devices that define our digital lives.
Here’s what makes this guide different: Instead of generic component lists, we’ll explore 47 specific SMD components that Pakistani electronics professionals actually use in real projects. You’ll discover which components solve common design challenges, where to source them locally, and how to avoid the costly mistakes that trip up even experienced engineers.
Whether you’re designing your first PCB or managing component procurement for a manufacturing facility, this comprehensive guide will transform how you approach SMD selection and implementation.

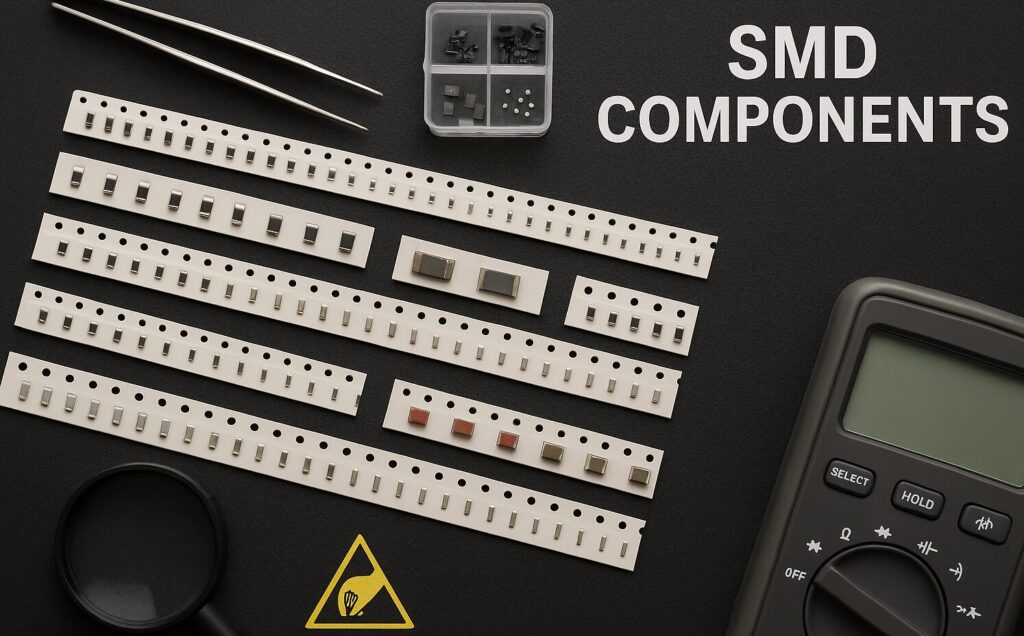

[Image: Professional workspace showing various SMD components organized on an ESD-safe mat] Alt text: Electronics professional organizing different types of SMD components on anti-static workbench at AristaVision service center
Ready to dive deep into the components that power Pakistan’s electronics future?
12 Fundamental Passive SMD Components
Passive components form the foundation of every electronic circuit. These workhorses don’t amplify signals, but they control, filter, and shape electrical current in ways that make complex circuits possible.
4 Types of SMD Resistors and Their Applications
1. Thick Film Chip Resistors (0201 to 2512 packages) The most common SMD resistors you’ll encounter in Pakistani electronics manufacturing. These components handle 90% of current limiting and voltage division tasks. I’ve seen factories in Lahore stock millions of these in standard values like 1kΩ, 10kΩ, and 100kΩ.
2. Thin Film Precision Resistors When tolerance matters, thin film resistors deliver accuracy within 0.1%. Medical device manufacturers in Islamabad rely heavily on these for precise measurements. They cost 3-4 times more than thick film variants but prevent costly recalls.
3. Current Sensing SMD Resistors These low-value, high-power resistors (typically 0.001Ω to 0.1Ω) monitor current flow in power supplies and motor drives. Pakistani automotive suppliers use these extensively in electric vehicle charging stations.
4. Anti-Surge SMD Resistors Built to withstand voltage spikes, these components protect sensitive circuits during power fluctuations—a common challenge in Pakistan’s electrical grid. They’re essential for any equipment designed for local market conditions.
8 Essential SMD Capacitor Varieties for Different Circuits
5. Multilayer Ceramic Capacitors (MLCC) The workhorses of decoupling and filtering applications. Available from 1pF to 100µF, these components handle high-frequency noise suppression in digital circuits. Pakistani smartphone repair centers stock these in 0.1µF and 1µF values.
6. Tantalum SMD Capacitors Excellent for power supply filtering where stable capacitance matters. Their low ESR characteristics make them ideal for switching regulators. However, proper derating is crucial—I’ve witnessed spectacular failures when engineers ignore voltage margins.
7. Aluminum Electrolytic SMD Capacitors High-capacity energy storage in compact packages. Perfect for bulk energy storage in power supplies. Local UPS manufacturers in Faisalabad use these extensively for backup power applications.
8. Film SMD Capacitors Superior stability and low loss characteristics make these ideal for precision analog circuits. Audio equipment manufacturers prefer these for signal coupling applications.
9. Ceramic X7R and C0G/NP0 Dielectric Types X7R offers high capacitance density but with temperature variation. C0G provides ultra-stable capacitance across temperature ranges. Choosing the wrong type has derailed many Pakistani startups’ product launches.
10. Variable SMD Capacitors (Trimmers) Fine-tuning circuit parameters without board redesign. RF equipment manufacturers use these for impedance matching and frequency adjustments.
11. Supercapacitors (EDLC) in SMD Packages Bridge the gap between batteries and capacitors. Internet of Things (IoT) developers in Pakistan leverage these for energy harvesting applications and backup power.
12. High-Voltage SMD Capacitors Specialized components for power electronics and LED drivers. The growing solar panel industry in Punjab relies on these for inverter applications.
18 Active SMD Components Revolutionizing Modern Electronics
Active components amplify, switch, and process electrical signals. They’re the brains behind intelligent electronic systems that Pakistani manufacturers increasingly develop for both local and export markets.
6 High-Performance SMD Transistors
13. MOSFET Power Transistors (SOT-23 to DPAK packages) The backbone of modern power management. These silicon switches handle everything from DC-DC converters to motor drives. Pakistani solar inverter manufacturers consume thousands monthly for efficient power conversion.
14. Bipolar Junction Transistors (BJT) in SMD Still relevant for analog amplification and switching applications where cost matters more than efficiency. Small-scale manufacturers in Sialkot use these for simple control circuits.
15. IGBT SMD Modules Insulated Gate Bipolar Transistors combine MOSFET control with BJT power handling. Essential for high-power applications like welding equipment and industrial motor drives produced in Pakistani factories.
16. Junction FET (JFET) SMD Components Low-noise characteristics make these perfect for audio amplifiers and precision analog circuits. Local audio equipment manufacturers prize these for their natural sound characteristics.
17. Darlington Transistor Arrays Multiple transistors in single packages provide high current gain. Relay drivers and LED arrays commonly use these configurations. They simplify PCB design while reducing component count.
18. RF Power Transistors Specialized for high-frequency applications in communication equipment. Pakistani cellular tower equipment manufacturers source these for signal amplification stages.
5 Precision SMD Diodes for Specialized Applications
19. Schottky Barrier Diodes Fast switching and low forward voltage drop make these ideal for high-frequency rectification. Switch-mode power supplies manufactured in Karachi rely heavily on these for efficiency improvements.
20. Zener Diodes for Voltage Regulation Precise voltage references and overvoltage protection. Available in voltages from 2.4V to 200V, these components protect sensitive circuits from power supply variations.
21. LED SMD Components Not just for illumination—these serve as status indicators, optical isolators, and even communication devices. The LED manufacturing cluster in Gujranwala produces millions of these monthly for both domestic and international markets.
22. Photodiodes in SMD Packages Light detection for everything from ambient light sensors to fiber optic communication. Pakistani security system manufacturers integrate these for motion detection and optical barriers.
23. Varactor Diodes (Variable Capacitance) Voltage-controlled capacitance enables electronic tuning in RF circuits. FM radio and wireless communication equipment manufacturers use these for frequency modulation and automatic frequency control.
7 Advanced SMD Integrated Circuits
24. Operational Amplifiers (Op-Amps) The Swiss Army knives of analog electronics. From simple voltage followers to complex active filters, these components enable sophisticated signal processing. Pakistani medical device manufacturers rely on precision op-amps for accurate measurements.
25. Voltage Regulators (Linear and Switching) Stable power supply generation from unregulated inputs. Linear regulators offer simplicity, while switching regulators provide efficiency. The choice depends on power requirements and heat dissipation constraints.
26. Microcontrollers in SMD Packages Complete computing systems in tiny packages. ARM Cortex-M series controllers power IoT devices developed by Pakistani startups. These single chips replace dozens of discrete components.
27. Digital Signal Processors (DSP) Specialized for mathematical operations on digital signals. Audio processing, motor control, and communication systems benefit from dedicated DSP capabilities rather than general-purpose processors.
28. Power Management ICs (PMIC) Integrated solutions for complex power requirements. Modern electronic devices need multiple voltage rails with specific sequencing and monitoring. PMICs simplify power system design significantly.
29. Interface ICs (I2C, SPI, UART, USB) Bridge different communication protocols and voltage levels. These components enable seamless integration between various system components without custom level-shifting circuits.
30. Sensor Interface ICs Specialized amplifiers and converters for sensor signals. Temperature, pressure, and motion sensors often require signal conditioning before microcontroller processing. These ICs integrate multiple functions in single packages.
17 Specialized SMD Components for Professional Projects
Professional electronics projects demand components beyond basic passive and active devices. These specialized components enable advanced functionality and system integration.
5 SMD Sensors for IoT Applications
31. Temperature Sensors (Digital and Analog) Precise temperature monitoring for environmental control and safety systems. Pakistani agricultural technology companies use these for greenhouse automation and cold storage monitoring.
32. Humidity Sensors Relative humidity measurement for HVAC systems and weather stations. The textile industry in Punjab integrates these for fabric processing control where moisture content critically affects quality.
33. Pressure Sensors (Absolute, Gauge, and Differential) From automotive applications to medical devices, pressure measurement enables critical safety and performance functions. Pakistani automotive parts manufacturers use these for tire pressure monitoring systems.
34. Accelerometers and Gyroscopes Motion sensing for everything from smartphone orientation to industrial vibration monitoring. Security system manufacturers in Islamabad integrate these for intrusion detection and equipment monitoring.
35. Magnetic Field Sensors (Hall Effect) Contactless position sensing and current measurement. Electric motor manufacturers use these for commutation timing and speed feedback in brushless DC motors.
4 Power Management SMD Solutions
36. DC-DC Converter Modules Complete power conversion solutions in compact packages. These modules include switching controllers, power MOSFETs, and magnetic components. They simplify power supply design while ensuring optimal performance.
37. Battery Management ICs Sophisticated charging and protection circuits for lithium-ion batteries. Pakistani power bank manufacturers must integrate these for safety compliance and optimal battery life.
38. Load Switches and Hot-Swap Controllers Intelligent power switching with overcurrent protection and soft-start capabilities. These components prevent damage during power-up sequences and fault conditions.
39. Motor Driver ICs Integrated solutions for brushed and brushless motor control. Robotics companies and automation equipment manufacturers rely on these for precise motor control without complex discrete circuits.
8 Communication SMD Components
40. Crystal Oscillators and Resonators Precise timing references for digital systems. Every microcontroller and communication circuit needs accurate clock signals. The frequency tolerance directly affects system performance and regulatory compliance.
41. RF Amplifiers and Mixers Essential building blocks for wireless communication systems. Pakistani cellular equipment manufacturers use these for signal processing in base stations and repeaters.
42. Ethernet PHY Controllers Physical layer interfaces for network communication. Industrial automation equipment and IoT gateways require reliable network connectivity for remote monitoring and control.
43. Wi-Fi and Bluetooth Modules Complete wireless communication solutions with integrated antennas and protocol stacks. These modules enable rapid development of connected devices without RF expertise.
44. CAN Bus Transceivers Automotive and industrial communication protocol interfaces. Pakistani automotive manufacturers integrate these for vehicle diagnostic systems and industrial control networks.
45. RS-485 Transceivers Robust serial communication for industrial environments. Factory automation systems rely on these for reliable data transmission over long distances in electrically noisy environments.
46. USB Controllers and Hubs Universal connectivity solutions for data transfer and power delivery. Every modern electronic device needs USB connectivity for configuration, firmware updates, or data exchange.
47. HDMI and Display Interface ICs Video signal processing and transmission controllers. Consumer electronics manufacturers use these for set-top boxes, gaming consoles, and digital signage applications.
3 Expert Tips for SMD Component Selection
After working with hundreds of Pakistani electronics projects, here are the insights that separate successful designs from expensive failures:
Tip 1: Always Consider Local Climate Conditions Pakistan’s extreme temperature variations and humidity levels affect component reliability. Choose automotive-grade or extended temperature range components for outdoor applications. I’ve seen street light controllers fail within months because engineers selected standard temperature range components.
Tip 2: Plan for Component Availability and Lead Times Global supply chain disruptions affect SMD component availability. Maintain relationships with multiple suppliers like AristaVision and always have backup component options. Design flexibility into your circuits to accommodate alternative components when primary choices become unavailable.
Tip 3: Invest in Proper ESD Protection and Storage Static electricity destroys more SMD components than any other factor. Implement proper ESD protocols, use anti-static storage containers, and train your team on handling procedures. A 500-rupee ESD workstation can prevent thousands of rupees in component damage.
Conclusion: Building Pakistan’s Electronics Future
The 47 SMD components covered in this guide represent the foundation of modern electronics manufacturing in Pakistan. From simple resistors to complex communication controllers, each component plays a crucial role in creating the devices that power our digital economy.
Success in Pakistan’s electronics industry requires more than just knowing these components—it demands understanding their applications, limitations, and interactions within complete systems. Whether you’re developing IoT devices in Lahore, manufacturing automotive components in Karachi, or building industrial automation systems in Faisalabad, these components provide the building blocks for innovation.
The key to mastering SMD technology lies in continuous learning and practical application. Start with simple projects, gradually incorporate more complex components, and always prioritize reliability over cost savings. Pakistani manufacturers who embrace this approach consistently deliver products that compete successfully in both domestic and international markets.
Remember, behind every successful electronic product lies careful component selection, proper design practices, and reliable supply partnerships. Companies like AristaVision understand these requirements and provide the technical support and component reliability that Pakistani electronics professionals need to succeed.
For comprehensive SMD component specifications and advanced design guidelines, consult the IPC Standards for Surface Mount Technology and IEEE Electronics Packaging Society Resources for the latest industry best practices.
Ready to transform your next electronics project with the right SMD components? The future of Pakistani electronics innovation starts with the components you choose today.
