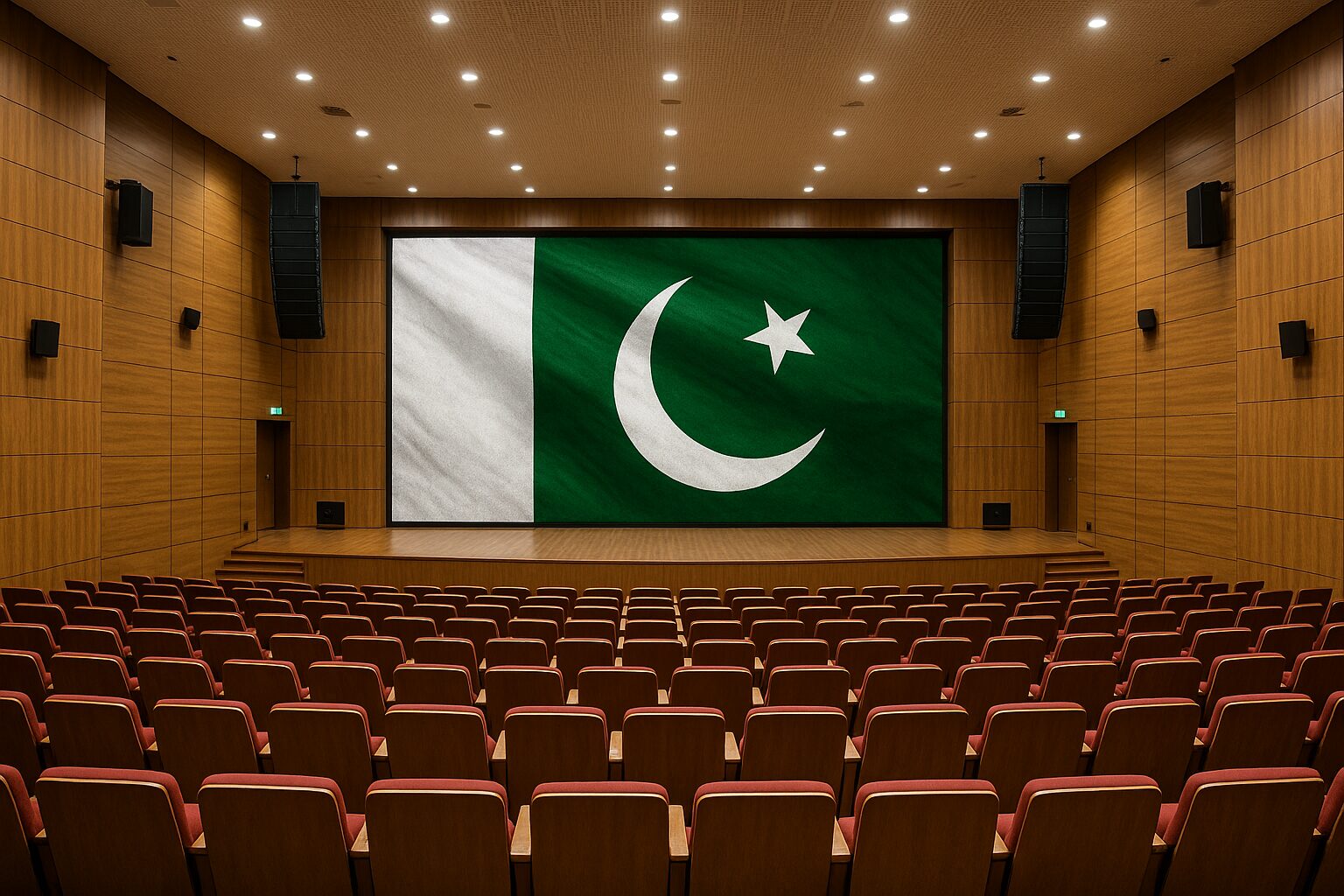

Auditoriums across Pakistan are experiencing a technological revolution, and I’ve been at the forefront of this transformation for over fifteen years. The integration of advanced sound systems with SMD video walls has become the gold standard for creating immersive experiences that captivate audiences from Karachi’s business districts to Lahore’s educational institutions.
The challenge isn’t just about installing the latest equipment – it’s about creating a harmonious ecosystem where crystal-clear audio perfectly complements stunning visual displays. In my years working with Pakistani venues, from corporate auditoriums in Islamabad to university lecture halls in Peshawar, I’ve witnessed how proper sound-video integration can make or break an event’s impact.
Audio-Visual System Integration
The foundation of exceptional auditorium performance lies in seamless audio-visual integration. Modern systems integrate professional speakers, power amplifiers, and digital signal processing units with video walls, cameras, projectors, and digital signage, creating a unified control environment that’s essential for Pakistani venues.
In my experience installing systems at major venues like the Lahore University of Management Sciences auditorium, the key is treating audio and video as complementary components rather than separate systems. The sound system must be configured to work in perfect harmony with the SMD video wall’s refresh rates and processing delays.
Speaker Placement Considerations
The relationship between speaker positioning and video wall placement is critical. When I installed a 3×3 SMD video wall system at a Karachi corporate center last year, we had to carefully position the line array speakers to avoid acoustic shadows while ensuring optimal sound distribution across the 300-seat auditorium.
Key placement factors include:
- Vertical alignment with video wall height to maintain visual-audio coherence
- Horizontal spacing that complements the video wall’s width without creating dead zones
- Angle optimization to prevent sound reflection off the SMD screen surface
- Distance calculations accounting for the video wall’s depth and mounting structure
Digital Signal Processing
Modern auditoriums demand sophisticated digital signal processing (DSP) to handle the complex interaction between audio feeds and video wall content. The DSP unit serves as the brain of the entire system, managing everything from microphone inputs to background music while ensuring perfect synchronization with visual content.
Processing Chain Configuration
The audio processing chain for video wall-integrated auditoriums requires specific attention to latency management. Video walls, particularly large SMD installations, can introduce processing delays of 16-50 milliseconds. Your DSP must compensate for this delay to maintain lip-sync accuracy during live presentations and video playback.
Essential DSP components include:
- Audio delay compensation matched to video wall processing time
- Acoustic echo cancellation for interactive presentations and video conferencing
- Feedback suppression algorithms that work around reflective SMD surfaces
- Dynamic range control to handle varying content types from presentations to entertainment
Power Infrastructure Requirements
Pakistan’s power infrastructure presents unique challenges that I’ve navigated throughout my career. Auditoriums with integrated SMD video walls and professional sound systems typically require 15-25 kW of stable power, depending on the installation size and configuration.
Electrical Considerations
The power requirements for a typical Pakistani auditorium setup include the SMD video wall consuming 800-1200 watts per square meter, while the sound system adds another 3-8 kW depending on the venue size. Recent installations like the NASTP KAMRA Auditorium demonstrate successful integration of SMD video walls in Pakistani venues, but each required careful power planning.
During the summer months, when temperatures in cities like Faisalabad and Multan can exceed 45°C, the cooling requirements increase substantially. I always recommend oversizing the UPS capacity by 30% to handle peak loads and provide adequate backup time during Pakistan’s frequent power fluctuations.
Climate Adaptation Strategies
Pakistan’s challenging climate conditions – from Karachi’s coastal humidity to Lahore’s dust storms – require specific adaptations for auditorium AV systems. The combination of extreme temperatures, high humidity, and dust particulates can severely impact both sound and video equipment performance.
Environmental Protection
SMD video walls are particularly sensitive to environmental conditions. Indoor installations in Pakistani auditoriums require temperature control between 18-24°C and humidity levels below 65% for optimal performance. I’ve learned this the hard way – a video wall installation I supervised in Multan experienced pixel failures within six months due to inadequate climate control.
Sound equipment faces similar challenges. Speaker drivers can suffer from humidity-induced corrosion, while electronic components may fail prematurely without proper ventilation. The dust common in Pakistani cities can clog ventilation systems and reduce heat dissipation efficiency.
Environmental protection strategies include:
- Positive pressure ventilation systems to prevent dust infiltration
- Dehumidification systems for coastal installations in Karachi and Gwadar
- Temperature monitoring with automatic shutdowns to protect equipment
- Regular maintenance schedules adapted to local environmental conditions
Audio System Specifications
Professional auditorium sound systems for video wall integration require specific technical specifications to ensure optimal performance. Based on my extensive experience with Pakistani installations, the following specifications provide the foundation for exceptional audio quality.
Amplification Requirements
The power amplification needs vary significantly based on auditorium size and acoustics. For a typical 200-300 seat auditorium with SMD video walls, I recommend:
Main Left-Right Arrays: 2000-4000 watts RMS per side Center Channel: 1500-2500 watts RMS for dialog clarity Subwoofers: 3000-6000 watts RMS total for full-range reproduction Fill Speakers: 500-1000 watts RMS for coverage optimization
Frequency Response Optimization
Video wall content often includes low-frequency effects and musical elements that require extended frequency response. The sound system should provide flat response from 40 Hz to 18 kHz, with controlled directivity to minimize reflections from the SMD screen surface.
Control System Integration
The control system serves as the nerve center for the entire auditorium experience, managing both audio and video elements through a unified interface. System compatibility and seamless integration of audio-visual, lighting, and IT systems are essential for operational efficiency.
User Interface Design
Pakistani auditorium operators often prefer simple, intuitive control interfaces. During my installation at the Pakistan Institute of Engineering and Applied Sciences, we implemented a tablet-based control system that allows operators to manage the entire AV system from a single interface.
The control system should provide:
- Preset scene management for different event types
- Real-time monitoring of system status and performance
- Remote diagnostic capabilities for troubleshooting
- Integration with building automation systems for coordinated operation
Installation Best Practices
Successful auditorium installations require meticulous planning and execution. My approach developed over years of working in Pakistani venues emphasizes thorough site surveys, detailed system design, and comprehensive testing protocols.
Pre-Installation Survey
Every auditorium presents unique acoustic and technical challenges. The architectural features, existing infrastructure, and intended use patterns all influence the optimal system configuration. I always conduct detailed acoustic measurements and infrastructure assessments before recommending specific equipment configurations.
Critical survey elements include:
- Acoustic analysis using specialized measurement software
- Structural assessment for video wall mounting and speaker suspension
- Power infrastructure evaluation including backup power capabilities
- Network infrastructure planning for system control and monitoring
Installation Sequence
The installation sequence for integrated auditorium systems requires careful coordination between audio and video installation teams. Video wall installation typically occurs first, followed by speaker mounting and system interconnection.
Maintenance and Support
Long-term reliability requires comprehensive maintenance programs adapted to Pakistan’s challenging operating environment. The combination of extreme temperatures, power fluctuations, and environmental contaminants demands proactive maintenance approaches.
Preventive Maintenance
Regular maintenance schedules should account for Pakistan’s seasonal variations and local environmental conditions. During the monsoon season, humidity control becomes critical, while dust storm seasons require more frequent cleaning and filter replacement.
Monthly maintenance tasks include:
- System performance verification and calibration adjustments
- Environmental monitoring and control system checks
- Cleaning protocols for SMD screens and acoustic treatments
- Power system testing including UPS battery health verification
Local Support Infrastructure
Leading Pakistani suppliers like Arista Vision provide comprehensive services from consultation to ongoing technical support, ensuring reliable long-term operation. Establishing relationships with local technical support providers is essential for maintaining system reliability.
Cost Optimization Strategies
Budget considerations often drive system design decisions in Pakistani auditoriums. My experience has shown that strategic component selection and phased implementation can deliver exceptional performance while managing costs effectively.
Phased Implementation
Many Pakistani institutions benefit from phased system implementation, starting with core functionality and expanding capabilities over time. This approach allows organizations to spread costs while ensuring immediate operational benefits.
A typical implementation phases include:
- Phase 1: Basic sound system with simple video display
- Phase 2: SMD video wall integration and advanced processing
- Phase 3: Control system sophistication and automation features
- Phase 4: Advanced features like recording and streaming capabilities
Future-Proofing Considerations
Technology evolution continues accelerating, and auditorium systems must accommodate future requirements. The infrastructure decisions made today will impact system capabilities for the next 10-15 years.
Technology Evolution
SMD screen resolution continues improving while costs decrease. The current trend toward 4K and 8K displays will eventually become standard, requiring sound systems capable of handling high-resolution audio content. Network-based audio distribution and cloud-based control systems represent the future direction of auditorium technology.
Infrastructure planning should accommodate:
- Higher bandwidth requirements for future video standards
- Network-based audio distribution systems
- Cloud integration for remote monitoring and control
- Artificial intelligence for automated system optimization
The Pakistani auditorium market is rapidly maturing, with venues demanding international-quality experiences. By following these configuration guidelines and working with experienced local suppliers, Pakistani auditoriums can achieve world-class audio-visual performance that enhances every presentation, performance, and gathering. The investment in proper system design and installation will pay dividends in reliability, performance, and audience satisfaction for years to come.
