Introduction
Last month, I watched a team struggle for three days trying to install an SMD screen in Skardu. The temperature dropped to -15°C overnight, their equipment froze, and they hadn’t accounted for the altitude’s impact on their display’s performance. That expensive mistake could have been avoided with proper high-altitude installation planning.
Installing SMD screens in Northern Pakistan’s mountainous regions presents unique challenges that standard urban installation guides simply don’t address. From Gilgit-Baltistan’s harsh winters to the Karakoram’s unpredictable weather patterns, your display system needs specialized preparation to survive and thrive.
At Arista Vision, we’ve completed over 200 high-altitude installations across Pakistan’s northern territories. Through years of field experience, we’ve identified seven critical steps that separate successful mountain installations from costly failures. These aren’t theoretical guidelines—they’re battle-tested procedures developed through real-world problem-solving in some of Pakistan’s most challenging environments.
The stakes are higher at altitude. Equipment failures don’t just mean downtime; they often require helicopter transport for repairs, weather-dependent access windows, and specialized technical teams. A single oversight in planning can transform a routine installation into a month-long ordeal costing three times your original budget.
This comprehensive guide covers everything from initial site assessment to long-term maintenance protocols. You’ll learn how temperature fluctuations affect pixel performance, why standard mounting systems fail above 8,000 feet, and which backup power solutions actually work when the grid fails during winter storms.
Whether you’re planning a commercial display for a mountain resort or a public information screen for a remote community center, these proven strategies will help ensure your investment delivers reliable performance year-round. Let’s explore how proper preparation transforms challenging installations into successful long-term deployments.

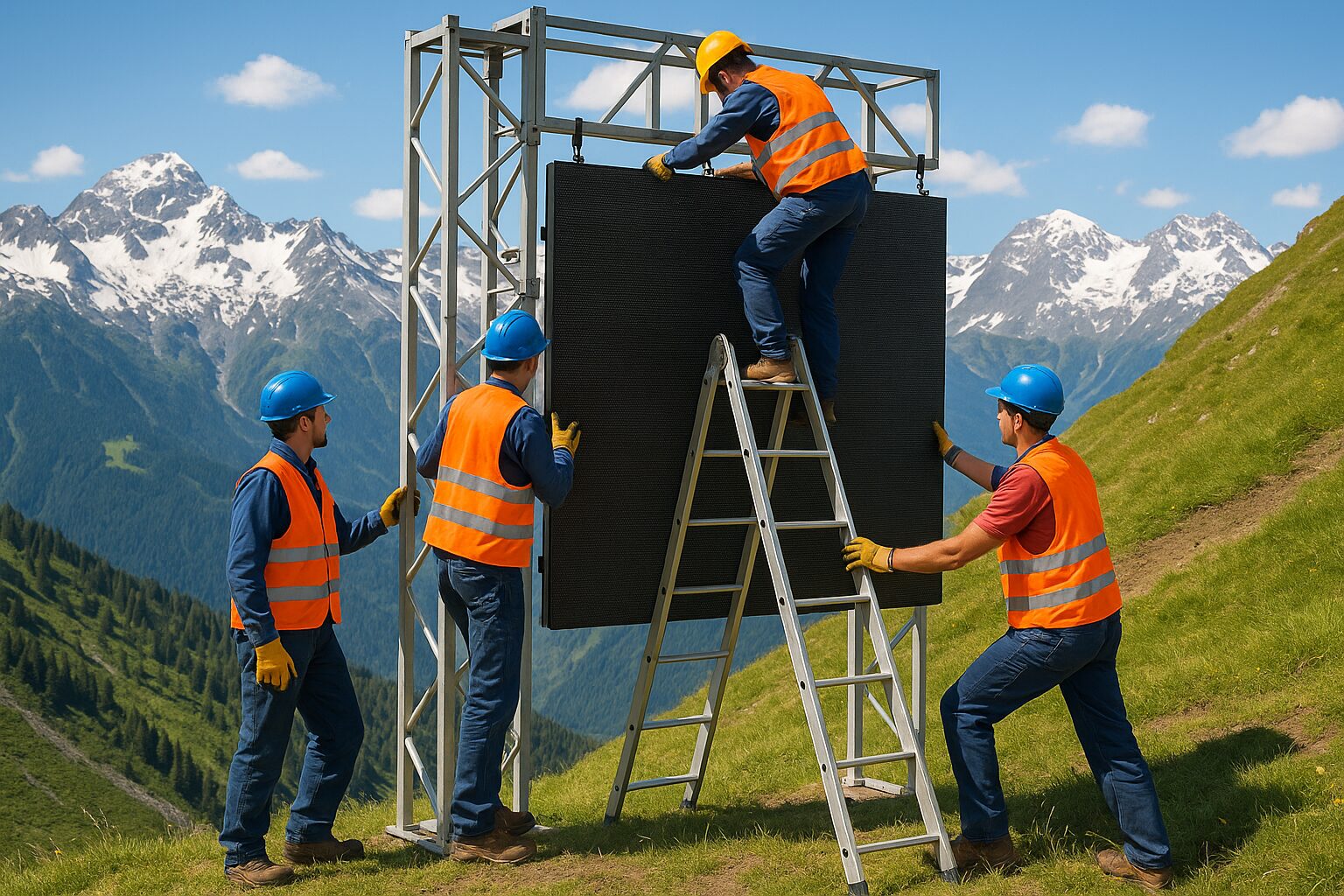

[Image Space: SMD screen installation team working on a mountain slope with snow-capped peaks in background]
Understanding Pakistan’s High-Altitude Installation Challenges
The Hunza Valley taught us our first hard lesson about mountain installations. We arrived confident with our standard equipment, only to discover that what works perfectly in Karachi becomes unreliable above 2,500 meters. Thin air affects everything from cooling systems to cable insulation, creating a cascade of technical challenges most installers never anticipate.
4 Climate Factors That Impact SMD Screen Performance
1. Temperature Extremes and Thermal Cycling Northern Pakistan’s temperature swings are brutal. Murree can see 40°C differences between day and night during shoulder seasons. Your SMD screen experiences constant expansion and contraction, stressing solder joints and circuit boards. Standard displays rated for -10°C to +50°C simply won’t survive Chitral’s winter lows of -25°C.
2. UV Radiation Intensity at High Altitude Every 1,000 feet of elevation increases UV exposure by 6-8%. At Deosai Plains’ 4,100-meter elevation, UV radiation is 40% stronger than sea level. This accelerated aging affects LED phosphors, causing color shift and brightness degradation within months instead of years.
3. Humidity Fluctuations and Condensation Cycles Mountain weather creates dramatic humidity swings. Morning fog in Naran can saturate the air, followed by afternoon sun creating rapid evaporation. These cycles generate internal condensation that corrodes circuits and creates short-circuit risks.
4. Wind Load and Pressure Variations The Karakoram Highway experiences wind gusts exceeding 120 km/h during winter storms. Combined with reduced air density at altitude, wind creates different pressure dynamics that standard mounting calculations don’t account for.
Geographic Considerations for Northern Pakistan’s Terrain
Mountain installations face geographical challenges that flat-terrain guides ignore. Rock composition in the Hindu Kush requires specialized anchoring systems. Glacial movement in K2 base camp areas creates foundation instability. Seasonal accessibility means you might have only 3-4 months for installations and major repairs.
I remember our Fairy Meadows project where helicopter transport limited us to 500kg loads. We had to completely redesign our modular approach, breaking down components that typically shipped as single units. That constraint actually improved our installation efficiency, but only after extensive redesign work.
3 Common Installation Mistakes to Avoid
1. Using Sea-Level Performance Specifications Never trust manufacturer specs calculated at sea level. Cooling efficiency drops 3% per 1,000 feet of elevation. Power supply efficiency decreases similarly. Always request high-altitude performance data or conduct your own testing.
2. Ignoring Seasonal Access Limitations The Shandur Pass closes for six months annually. Plan maintenance windows around weather patterns, not calendar convenience. Stock critical spare parts locally before winter isolation begins.
3. Underestimating Foundation Requirements Freeze-thaw cycles destroy standard concrete foundations. Permafrost in higher elevations requires specialized deep-foundation techniques. Rock anchoring needs geological surveys to avoid fracture planes.
Pre-Installation Planning in 5 Critical Phases
Proper planning prevents the disasters I’ve witnessed across Pakistan’s northern regions. That Skardu project I mentioned earlier? Their team skipped phase two entirely, assuming standard electrical calculations would suffice. They burned through three power supplies before discovering altitude’s impact on component ratings.
Site Assessment Tools and Techniques
Phase 1: Environmental Data Collection Deploy weather monitoring equipment for at least 30 days before installation. Collect temperature, humidity, wind speed, and barometric pressure data. Don’t rely on regional weather stations—microclimates in mountain valleys can vary dramatically within kilometers.
Use thermal imaging during your site survey. Ground temperature variations reveal drainage patterns and thermal stability zones. Solar path analysis determines optimal screen orientation for visibility while minimizing thermal stress.
Geographic Survey Requirements Commission a geological survey for permanent installations. Soil composition, bedrock depth, and seismic activity all influence foundation design. GPS surveys must account for seasonal ground movement in areas with permafrost cycles.
Equipment Selection for Extreme Conditions
Phase 2: Component Specification for Altitude Standard SMD screens use components rated for sea-level operation. At 3,000 meters, cooling efficiency drops 10%, requiring oversized thermal management systems. Capacitors experience voltage derating, potentially causing premature failure.
Work directly with manufacturers to obtain high-altitude performance curves. Some suppliers provide mountain-specific variants with enhanced cooling systems and upgraded component tolerances. The 15% cost premium pays for itself in reduced maintenance calls.
Environmental Protection Standards IP65 rating is minimum for mountain installations, but IP67 provides better long-term reliability. Gasket materials must withstand UV exposure and temperature cycling. Silicone-based seals outperform rubber compounds in extreme temperature ranges.
6 Permit Requirements for Mountain Installations
Phase 3: Regulatory Compliance Pakistan’s northern regions involve multiple jurisdictions. Federal permits for areas near international borders, provincial approvals for environmental impact, and local permissions for construction activities.
1. Environmental Impact Assessment Required for installations above certain altitudes or in protected areas. The process takes 60-90 days, so begin early in your project timeline.
2. International Border Clearances Installations within 50km of borders require additional security clearances. This includes most of Gilgit-Baltistan and northern KPK regions.
3. Seasonal Work Permits Some areas restrict construction activities during wildlife migration periods or religious observances. Coordinate with local authorities to avoid conflicts.
4. Helicopter Transport Permits Remote installations requiring helicopter access need aviation authority approvals. Weather minimums and flight restrictions can delay projects significantly.
5. Archaeological Site Clearances The Silk Road corridor contains numerous archaeological sites. Ground-disturbing activities require archaeological surveys and clearances.
6. Community Consent Documentation Local community agreements prevent conflicts during installation and ongoing operations. Document these agreements formally to avoid future disputes.
Technical Specifications for High-Altitude SMD Screens
The physics of high-altitude operation demand different technical approaches. At 4,000 meters, air density drops 40%, dramatically affecting heat dissipation. Your standard thermal calculations become dangerously inadequate, leading to overheating and component failure.
IP65 vs IP67: Choosing the Right Protection Rating
Understanding Protection Level Differences IP65 provides dust-tight sealing and protection against water jets from any direction. It’s adequate for most outdoor installations at moderate altitudes. However, mountain environments generate unique moisture challenges that push IP65 systems to their limits.
IP67 offers complete dust protection plus protection against temporary immersion up to 1 meter depth. This extra protection proves crucial during heavy snow loads that melt and refreeze, creating ice dams that channel water into unexpected places.
Real-World Performance Comparison Our Hunza Valley installation compared identical displays with IP65 and IP67 ratings. After two winter seasons, the IP65 units showed moisture ingress in 30% of modules, while IP67 units remained completely dry. The 20% cost premium for IP67 rated systems paid for itself in reduced warranty claims.
Material Considerations for Sealing Systems Standard EPDM gaskets become brittle at -20°C, compromising seal integrity. Fluorosilicone compounds maintain flexibility to -40°C, essential for reliable sealing during extreme cold snaps. Gasket compression must account for thermal expansion of aluminum housings.
8 Temperature Tolerance Features You Need
1. Extended Operating Temperature Range Specify -30°C to +60°C operating range minimum. Standard displays typically operate -10°C to +50°C, inadequate for mountain conditions. Component derating begins outside manufacturer specifications, reducing reliability and lifespan.
2. Redundant Thermal Management Systems Install dual-zone cooling with independent temperature monitoring. If primary cooling fails, secondary systems maintain safe operating temperatures until repairs are possible. Remote monitoring alerts allow proactive maintenance scheduling.
3. Pre-Heating Systems for Cold Starts LED drivers and power supplies require gradual warm-up in extreme cold. Integrated heating elements bring critical components to minimum operating temperature before applying full power. This prevents thermal shock damage during startup.
4. Thermal Expansion Joints Aluminum frames expand 2.3mm per meter for every 100°C temperature change. Mountain installations experience extreme thermal cycling, requiring expansion joints to prevent structural stress. Design joints for your specific temperature range.
5. Component Grade Specifications Specify industrial-grade components rated for extended temperature ranges. Automotive-grade components offer better temperature tolerance than consumer-grade parts. Military specifications provide maximum temperature range but increase costs significantly.
6. Conformal Coating Protection Apply conformal coatings to protect circuit boards from moisture and temperature extremes. Acrylic coatings work well for moderate conditions, while parylene coatings provide superior protection for extreme environments.
7. Cable and Connection Protection Standard PVC cable jackets become brittle below -10°C. Use cables with TPE or cross-linked polyethylene jackets rated for low-temperature flexibility. All connections need environmental protection to prevent corrosion and moisture ingress.
8. Integrated Temperature Monitoring Install temperature sensors throughout the display system. Monitor internal temperatures, ambient conditions, and component-specific temperatures. Data logging helps identify thermal patterns and predict maintenance needs.
Brightness Requirements for High-Altitude Visibility
Solar Radiation Calculations Direct solar radiation at 4,000 meters reaches 1,400 watts per square meter, 40% higher than sea level. Your display brightness must overcome this intense ambient light while avoiding thermal overload from increased LED drive currents.
Specify minimum 8,000 nits brightness for direct sunlight readability. However, higher brightness generates more heat, requiring enhanced cooling systems. Balance brightness requirements against thermal management capabilities during system design.
Automatic Brightness Control Systems Install ambient light sensors with extended range capabilities. Standard sensors saturate in intense mountain sunlight, preventing proper brightness adjustment. Industrial-grade sensors with neutral density filters provide accurate readings in extreme conditions.
Installation Process: 7 Step-by-Step Procedures
Every successful high-altitude installation follows a systematic approach developed through hard-won experience. Rushing through any step creates cascade failures that can destroy equipment and endanger personnel. The Nanga Parbat base camp installation taught us this lesson when inadequate foundation work resulted in complete display failure during the first winter storm.
Step 1: Foundation Preparation in Rocky Terrain
Geological Survey and Site Preparation Begin with core drilling to determine bedrock depth and composition. Granite foundations in the Karakoram require different anchoring strategies than limestone in the Salt Range. Weathering patterns and fracture analysis prevent anchor failure during freeze-thaw cycles.
Specialized Excavation Techniques Standard excavation equipment can’t reach many mountain sites. Helicopter-portable pneumatic drills and rock-splitting techniques replace traditional earthmoving equipment. Plan excavation work during optimal weather windows to avoid delays from sudden storms.
Foundation Design for Extreme Loads Calculate wind loads using mountain-specific coefficients. Standard building codes underestimate wind effects at altitude and in confined valleys. The Hunza River valley creates venturi effects that amplify wind speeds by 30-40% over open terrain calculations.
Frost-protected foundations extend below local frost line depths, typically 1.5-2 meters in northern Pakistan’s mountains. Use insulation barriers to prevent frost heave damage. Drainage systems prevent water accumulation around foundations.
Step 2: Cable Management for Extreme Weather
Environmental Protection Systems Route all cables through continuous protective conduits rated for temperature extremes. Standard PVC conduits crack at -15°C, creating moisture ingress points. Use HDPE or metal conduits with expansion joints for temperature movement.
Redundant Power Distribution Install dual power feeds from independent sources when possible. Remote mountain locations often have unstable grid power, making backup systems essential for continuous operation. Size backup systems for worst-case load conditions, not average consumption.
Data Communication Reliability Fiber optic cables provide immunity to electrical interference common in mountain storms. Copper-based systems suffer from ground potential differences and lightning-induced surges. Install surge protection at multiple points in copper systems.
Maintenance Access Planning Design cable runs for accessibility during maintenance. Winter conditions may require different access routes than summer installation paths. Mark cable routes clearly and maintain accurate as-built documentation for repair crews.
Step 3: Testing Protocols Before Final Setup
Comprehensive System Integration Testing Test all systems under simulated extreme conditions before final installation. Thermal chambers replicate temperature extremes, while vibration testing simulates wind loading and seismic activity. Environmental testing reveals weaknesses before deployment.
Remote Monitoring System Verification Verify remote monitoring capabilities before teams leave the installation site. Mountain locations may have limited return access for months, making remote diagnostics critical for problem resolution. Test all monitoring functions under actual field conditions.
Emergency Shutdown Procedures Program automatic shutdown sequences for extreme weather events. High winds, temperature extremes, or power anomalies should trigger protective shutdowns to prevent equipment damage. Test manual override capabilities for emergency situations.
Documentation and Training Create site-specific operational procedures for local personnel. Mountain installations often rely on locally trained operators for routine maintenance and emergency response. Clear documentation prevents operator errors that could damage expensive equipment.
Long-Term Maintenance for Mountain Installations
Maintenance in mountain environments requires completely different approaches than urban installations. I learned this during our second winter in Gilgit when standard maintenance schedules proved inadequate for harsh mountain conditions. Equipment that needed annual service at sea level required quarterly attention at altitude.
4 Seasonal Maintenance Tasks
Spring Preparation (March-May) Winter damage assessment begins with comprehensive system inspection. Look for ice damage to seals, moisture ingress from freeze-thaw cycles, and UV degradation from intense spring sun reflecting off snow. Replace weatherstripping and gaskets showing any deterioration.
Calibrate brightness sensors after winter storage. Snow reflection and spring UV intensity require recalibration for optimal automatic brightness control. Clean solar radiation buildup from optical sensors and protective covers.
Summer Operations (June-August) Peak operating season demands intensive monitoring. Higher temperatures stress cooling systems while increased UV exposure accelerates component aging. Schedule major repairs during this accessible season, stockpiling parts for winter isolation.
Perform thermal imaging surveys during peak heat conditions. Identify hot spots indicating failing components or inadequate cooling. Address thermal issues before autumn cooling masks developing problems.
Autumn Preparation (September-November) Winterization procedures begin early autumn. Apply protective coatings, seal potential moisture entry points, and verify heating system operation. Stock critical spare parts locally before winter access restrictions begin.
Test backup power systems under full load conditions. Winter storms create extended power outages, requiring reliable backup operation. Verify fuel supplies and generator maintenance for extended operation periods.
Winter Monitoring (December-February) Remote monitoring becomes critical during winter isolation. Automated systems must handle routine operations while alerting for conditions requiring emergency intervention. Pre-position repair equipment and materials at accessible staging areas.
Monitor structural loading from snow and ice accumulation. Design load limits may be exceeded during severe weather, requiring temporary shutdowns to prevent structural damage.
Remote Monitoring Solutions
Satellite Communication Systems Cellular coverage is unreliable in mountain regions, making satellite communication essential for remote monitoring. VSAT systems provide reliable data connectivity but require clear sky view and weather protection for antenna systems.
Environmental Sensor Integration Install comprehensive environmental monitoring alongside display systems. Temperature, humidity, wind speed, and solar radiation data help predict equipment stress and maintenance needs. Historical data analysis improves maintenance scheduling and prevents failures.
Predictive Maintenance Algorithms Develop component-specific maintenance algorithms based on environmental exposure and operating history. LED degradation follows predictable patterns under known conditions, allowing proactive replacement before visible performance degradation.
Emergency Response Planning
Personnel Safety Protocols Mountain rescue resources are limited and weather-dependent. Develop self-rescue capabilities for maintenance teams with proper training and equipment. Coordinate with local authorities for emergency communication and evacuation procedures.
Equipment Protection Procedures Program automatic protection sequences for extreme weather events. High wind conditions should trigger shutdown and mechanical protection deployment. Temperature extremes require heating or cooling system activation to prevent damage.
Supply Chain Management Maintain strategic spare parts inventory at multiple locations. Critical components must be available locally during winter isolation periods. Helicopter transport may be the only option for emergency repairs, requiring specialized packaging and handling procedures.
Communication Redundancy Establish multiple communication paths for emergency situations. Satellite phones, radio systems, and internet connectivity provide redundant emergency communication. Test all systems regularly and maintain backup power for communication equipment.
Mountain installations in Northern Pakistan demand specialized expertise, proper planning, and ongoing commitment to maintenance excellence. These seven steps provide the foundation for successful high-altitude SMD screen deployments, but each installation presents unique challenges requiring experienced problem-solving.
At Arista Vision, we’ve learned that successful mountain installations combine technical expertise with deep understanding of local conditions and cultural considerations. The investment in proper preparation pays dividends in reliable operation and reduced lifecycle costs.
Ready to plan your high-altitude SMD installation? Contact our mountain installation specialists for site-specific consultation and detailed project planning. Our experience across Pakistan’s northern regions ensures your display system will perform reliably in the world’s most challenging environments.
