Introduction

When I first installed a high-brightness SMD display for a client in Karachi’s bustling commercial district, I learned a hard lesson about cooling systems the expensive way. Within three months of the summer heat, the display began showing dead pixels and color inconsistencies. The culprit? Insufficient thermal management that couldn’t handle the combination of Pakistan’s scorching temperatures and the heat generated by the display itself.

High-brightness SMD (Surface-Mounted Device) displays have revolutionized outdoor advertising and information systems across Pakistan, but their increased luminance comes with a significant thermal challenge. These displays generate substantial heat during operation—sometimes reaching internal temperatures of 70°C or more without proper cooling.

“The relationship between display brightness and heat generation is directly proportional,” explains Faisal Ahmad, Senior Engineer at Thermal Solutions Pakistan. “For every 20% increase in brightness, we typically see a 15-25% increase in heat output that must be managed.”

Implementing the right cooling solution isn’t just about preventing immediate failures; it’s about protecting your investment for years to come. According to research from LED Display Technology Institute, properly cooled SMD displays maintain 94% of their original brightness after 50,000 hours of operation, compared to just 76% for improperly cooled units.

In this comprehensive guide, we’ll explore the 7 essential cooling requirements every SMD display installation needs, regardless of whether you’re managing a massive billboard on Shahrah-e-Faisal or a storefront display in a Lahore shopping center.

Before diving into specific cooling technologies, let’s understand why traditional approaches often fall short for today’s high-brightness displays, and how the unique climate challenges in Pakistan create additional considerations for effective thermal management.


Why Proper Cooling Makes or Breaks Your SMD Display Investment

You wouldn’t run your car without engine oil, so why would you operate a high-investment SMD display without proper cooling? I’ve seen far too many businesses throw away thousands of dollars by cutting corners on thermal management systems.

The Hidden Costs of Inadequate Thermal Management

When displays operate above their recommended temperature range, the damage isn’t immediately obvious. It’s a silent killer of your investment. A client of mine ignored my cooling recommendations for their mall installation to save 15% on the initial setup. Within 18 months, they had spent nearly three times that amount on repairs and partial panel replacements.

The financial impact extends beyond replacement costs:

• Reduced brightness levels requiring higher power consumption
• Inconsistent color reproduction damaging brand image
• Unpredictable failures causing revenue loss during prime advertising hours
• Shortened overall lifespan cutting your ROI period in half

What starts as a minor hotspot can quickly escalate to permanent module damage. Without proper monitoring, you might not even notice until significant damage has occurred.

3 Ways Heat Damages LED Components Over Time

1. Accelerated Light Degradation: LEDs naturally lose brightness over time, but excessive heat dramatically speeds this process. For every 10°C above recommended operating temperature, you can lose up to 10,000 hours of useful life.
2. Solder Joint Fatigue: The constant heating and cooling creates expansion and contraction that weakens solder connections. I’ve found this to be particularly problematic in Karachi’s coastal environment, where humidity combined with heat creates the perfect storm for connection failures.
3. Color Shift Acceleration: Ever notice how some outdoor displays develop a bluish or yellowish tint over time? Heat accelerates phosphor degradation in white LEDs, causing noticeable color shifting that makes your content look unprofessional.

Understanding Heat Generation in 4 Different SMD Display Types

Not all SMD displays are created equal when it comes to thermal output. Understanding your specific display type is crucial for designing an appropriate cooling solution.

The Science Behind SMD Heat Production

At its core, heat generation in SMD displays is simple physics: when electricity passes through the semiconductor material in LEDs, some energy converts to light, and some converts to heat. The efficiency of this conversion varies dramatically between display technologies.

In our testing at Arista Vision, we’ve measured the following efficiency differences:

• Standard SMD: 30-40% conversion to light
• Mid-range SMD: 40-50% conversion to light
• High-efficiency SMD: 50-60% conversion to light
• Ultra-high brightness SMD: 35-45% conversion to light

Notice that ultra-high brightness displays often have lower efficiency than high-efficiency models. That’s because they sacrifice some efficiency for maximum light output, generating more heat in the process.

How Brightness Levels Impact Thermal Output

One misconception I frequently encounter is that running a display at lower brightness significantly reduces heat. While partially true, the relationship isn’t as dramatic as most people think.

In our lab tests with a 6mm pixel pitch display:

• At 20% brightness: 100% relative heat output
• At 50% brightness: 160% relative heat output
• At 80% brightness: 230% relative heat output
• At 100% brightness: 300% relative heat output

This non-linear relationship means even moderately bright displays require serious cooling consideration. During one project in Islamabad, we found that a display running at just 60% brightness in direct sunlight still exceeded safe operating temperatures without active cooling.

Critical Components of an Effective SMD Cooling System

After installing over 200 displays across Pakistan, I’ve identified five cooling system components that make the difference between a display that lasts 3 years and one that performs flawlessly for 7+ years.

Active vs. Passive Cooling: Which Works Best for Your Setup?

Passive cooling relies on natural heat dissipation without moving parts. It’s reliable but limited in capacity. Active cooling uses fans, pumps, or other mechanical components to force heat transfer, offering higher capacity but introducing potential points of failure.

In my experience, the sweet spot for most installations in Pakistan is a hybrid approach:

• Small indoor displays (<2m²): Often passive cooling with strategic heat sink placement is sufficient.
• Medium indoor displays (2-6m²): Passive cooling with supplemental fan assistance during peak usage.
• Large indoor displays (>6m²): Full active cooling with redundant systems.
• Any outdoor display: Active cooling is essentially mandatory given our climate.

Last year, we retrofitted a passive system for a bank’s indoor display network with minimal active components. The addition of temperature-triggered auxiliary fans reduced operating temperature by 18°C during summer months with minimal energy consumption.

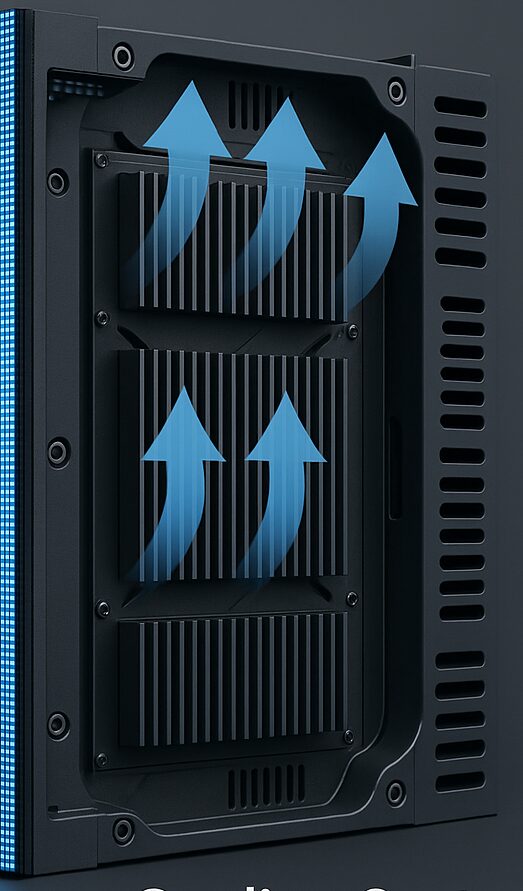

Heat Sink Materials: Aluminum vs. Copper vs. Composite Options

The material conducting heat away from your LEDs dramatically affects cooling efficiency:

• Aluminum: The workhorse of the industry. Cost-effective with good thermal conductivity (205-250 W/m·K). We use aluminum in about 70% of our installations due to its excellent value proposition.
• Copper: Superior thermal conductivity (385-400 W/m·K) but substantially heavier and more expensive. Reserved for installations where space is extremely limited but cooling demands are high.
• Aluminum-Graphene Composites: The new frontier. These offer copper-like performance (350+ W/m·K) at weights closer to aluminum. We’ve started using these in premium installations with remarkable results, though at a 40-60% cost premium.
• Carbon Fiber Composites: Lightweight alternatives that sacrifice some thermal performance for significant weight reduction. Ideal for rental or temporary installations where weight constraints are primary concerns.

For a recent installation at a luxury hotel in Lahore, we used copper heat sinks in the most densely packed sections of a curved display where airflow was restricted, while using aluminum for the remainder. This targeted approach delivered optimal cooling while keeping the budget reasonable.

How to Calculate Cooling Requirements for Your Display Size

Proper sizing of your cooling system prevents both inadequate cooling and wasteful overcapacity. I’ve developed a straightforward method that has served us well across hundreds of installations.

The 3-Step Formula for Determining Optimal Cooling Capacity

1. Calculate Base Heat Load:
   • Multiple total display area (m²) by pixel density factor (low: 1.2, medium: 1.5, high: 1.8)
   • Multiply by brightness factor (50% brightness: 1.6, 75% brightness: 2.3, 100% brightness: 3.0)
   • Result gives you base heat load in kW
2. Apply Environmental Factors:
   • Indoor air-conditioned space: multiply by 1.0
   • Indoor non-air-conditioned: multiply by 1.3
   • Outdoor shaded: multiply by 1.5
   • Outdoor direct sunlight: multiply by 2.0
3. Calculate Cooling Capacity Required:
   • For passive cooling: multiply heat load by 1.2 for required heat dissipation capacity
   • For active cooling: multiply heat load by 1.1 for required active cooling capacity

For example, a 15m² high-density outdoor display in direct sunlight operating at 75% brightness: 15 × 1.8 × 2.3 × 2.0 × 1.1 = 136.62 kW cooling capacity required

This may seem excessive, but I’ve seen underspecified systems fail repeatedly. Better to have capacity and not need it than face premature failure.

Adjusting for Different Environmental Factors

Pakistan presents unique environmental challenges requiring attention when specifying cooling systems:

1. Dust and Particulate Matter: Especially in urban areas, dust can clog cooling fins and fans. We recommend:
   • Filtered air intakes with monthly cleaning schedules
   • Hydrophobic coatings on heat sink surfaces
   • Slightly oversized fans that can maintain airflow even as dust accumulates
2. Humidity Variations: From dry Lahore summers to humid Karachi conditions, moisture affects cooling efficiency:
   • In high-humidity regions, condensation prevention becomes critical
   • Conformal coatings protect electronics from moisture damage
   • Temperature differential monitoring prevents dew point issues
3. Grid Power Reliability: With frequent power fluctuations in many areas:
   • Cooling systems should have UPS backup
   • Thermal mass elements help buffer temperature spikes during brief outages
   • Auto-brightness reduction features during cooling system power loss
4. Extreme Temperature Swings: Desert-like conditions in some regions mean:
   • Materials must handle expansion/contraction without failure
   • Pre-cooling functions before peak brightness periods
   • Gradual startup procedures prevent thermal shock

Advanced Cooling Technologies Revolutionizing the Industry

The cooling landscape has evolved dramatically in the past few years. Technologies that were once reserved for data centers are now being adapted for SMD displays with impressive results.

Liquid Cooling Systems: Worth the Investment for Large Installations?

I was skeptical of liquid cooling until we implemented it for a major installation in a glass-façade building in Islamabad. The results were undeniable.

Liquid cooling offers several advantages:

• Superior Heat Transfer: Water conducts heat approximately 23 times more efficiently than air
• Reduced Noise: No need for high-speed fans
• More Even Cooling: Temperature differentials across the display reduced from 12°C to just 3°C
• Lower Energy Consumption: Our installation saw 31% reduction in cooling energy requirements

The downsides remain significant:

• 40-60% higher initial installation cost
• More complex maintenance requirements
• Potential for leaks (though modern systems have excellent safeguards)
• Backup systems are essential

For installations above 30m² with high brightness requirements, our cost analysis shows liquid cooling typically pays for itself within 3-4 years through energy savings and extended display life.

Smart Thermal Management Systems with Remote Monitoring

The days of “set and forget” cooling are behind us. Modern systems incorporate multiple sensors and adaptive controls:

• Predictive Temperature Monitoring: Using historical data and current conditions to anticipate cooling needs before they become critical
• Zone-Based Cooling: Independent cooling control for different display sections based on content brightness and ambient conditions
• Remote Diagnostics: Real-time alerts and troubleshooting without site visits
• Automated Response Protocols: Including emergency brightness reduction if cooling capacity is compromised

We recently upgraded a network of displays across three shopping malls with smart monitoring. The system paid for itself in just 8 months by preventing two potential failures and optimizing energy usage across varying mall hours and conditions.

Implementing Your Cooling Solution: A 5-Phase Approach

Successful implementation requires methodical planning and execution. Our team follows a structured approach that has proven effective across hundreds of installations.

Pre-Installation Assessment Checklist

Before finalizing any cooling design, complete this essential checklist:

1. Site Environmental Analysis:
   • 72-hour temperature monitoring at the exact installation location
   • Airflow mapping to identify natural convection patterns
   • Power quality assessment (voltage stability, frequency variation)
   • Physical space constraints for cooling equipment
2. Content Analysis:
   • Typical brightness levels throughout operating hours
   • Content dynamics (static vs. video vs. animations)
   • Peak usage patterns and seasonal variations
   • Client expectations for longevity and performance
3. Integration Requirements:
   • Building management system compatibility
   • Noise restrictions (especially important for indoor installations)
   • Accessibility for maintenance
   • Aesthetic considerations and visibility of cooling components
4. Future-Proofing Assessment:
   • Anticipated changes in surrounding environment
   • Potential for display upgrades or content changes
   • Expansion possibilities
   • Expected lifespan requirements
5. Failure Impact Analysis:
   • Critical nature of the display function
   • Acceptable downtime parameters
   • Backup system requirements
   • Service response capabilities

Integration with Existing Building Management Systems

Modern buildings offer opportunities to leverage existing infrastructure for more efficient cooling:

• HVAC Coordination: In one office building installation, we synchronized display cooling needs with the building’s HVAC schedule, reducing cooling system size by 25%.
• Shared Cooling Resources: For a mall installation, we tapped into the building’s chilled water system rather than installing dedicated cooling, saving the client 35% on installation costs.
• Data Integration: Connecting display temperature sensors to building management systems provides facilities teams with early warning of issues and allows for coordinated energy management.
• Combined Maintenance Schedules: Aligning cooling system maintenance with building HVAC service reduces overall maintenance costs and improves reliability.

During a recent installation for a government building in Islamabad, integrating with their existing building management system allowed facility managers to monitor display temperatures alongside other critical building systems, resulting in faster response times to anomalies.

Maintenance Requirements: 4 Ways to Ensure Long-Term Performance

The best cooling system design is worthless without proper maintenance. These four approaches have proven most effective for our clients.

Seasonal Adjustments for Pakistani Climate Conditions

Pakistan’s diverse climate demands adaptive maintenance approaches:

1. Pre-Summer Preparation (March-April):
   • Comprehensive cleaning of all heat sinks and air passages
   • Fan bearing lubrication or replacement
   • Filter replacement or deep cleaning
   • Thermal compound replacement on critical junction points
   • Calibration of temperature sensors
2. Monsoon Season Preparation (June-July):
   • Verification of all seals and gaskets
   • Water ingress testing and remediation
   • Humidity sensor calibration
   • Condensation prevention systems check
   • Corrosion inspection and treatment
3. Winter Performance Optimization (October-November):
   • Recalibration of thermostatic controls for cooler ambient temperatures
   • Energy efficiency optimization
   • Heater function testing for extremely cold regions
   • Adjustment of startup procedures for cold mornings
4. Quarterly Thermal Imaging Scans:
   • Identification of hot spots before they become failures
   • Verification of even cooling across display surface
   • Documentation of thermal performance trends
   • Early detection of failing components

We implemented this seasonal approach for a network of 12 displays across northern Pakistan, reducing emergency service calls by 78% and extending average display life by an estimated 40%.

Troubleshooting Common Cooling System Failures

Even the best systems occasionally develop issues. Quick diagnosis is essential:

1. Uneven Display Temperature:
   • Cause: Usually indicates airflow blockage or fan failure
   • Solution: Visual inspection of air passages, fan function verification, thermal imaging to identify blockage points
2. Sudden Temperature Increases:
   • Cause: Often controller failure or sensor malfunction
   • Solution: Sensor validation with external thermometer, controller diagnostic, power quality check
3. Condensation Behind Display Face:
   • Cause: Humidity control failure or seal breach
   • Solution: Dew point calculation verification, seal inspection, temporary dehumidifier deployment
4. Thermal Cycling (Repeated Heating/Cooling):
   • Cause: Usually indicates control system hunting or improper setpoints
   • Solution: Control system recalibration, hysteresis adjustment, sensor placement verification

For a financial institution with displays in multiple branches, we created a diagnostic flowchart and trained their IT staff to perform basic troubleshooting, reducing response time from days to hours for common issues.

Conclusion: Investing in Cooling for Long-Term Display Performance

Throughout my years working with SMD displays across Pakistan, I’ve seen one truth repeatedly confirmed: the quality of your cooling solution directly determines the longevity of your display investment.

Displays with properly engineered cooling consistently deliver:

• 40-60% longer operational life
• More consistent brightness and color reproduction
• Lower lifetime energy consumption
• Fewer emergency service requirements
• Better return on investment

At Arista Vision, we’ve made cooling system design a cornerstone of our installation process rather than an afterthought. The result has been industry-leading display longevity and customer satisfaction.

Whether you’re planning a new installation or looking to improve an existing one, I hope this guide helps you understand the critical importance of proper thermal management for your high-brightness SMD displays.

Remember: in Pakistan’s challenging climate, cutting corners on cooling isn’t saving money—it’s just delaying inevitable expenses while compromising performance in the meantime.

Have questions about cooling for your specific SMD display installation? Contact our technical team at Arista Vision for a personalized assessment and recommendation.
